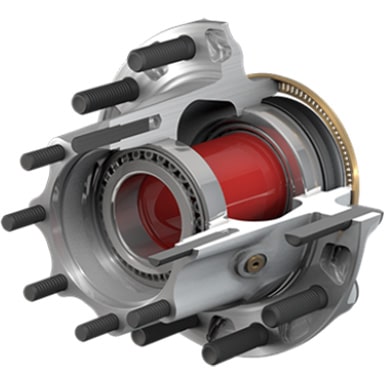

10082217 ConMet PreSet Drive Hub Assembly – Hub Pilot-10 Stud-ABS


Compare

Replaces: CM10001344, CM10001573, CM10001575, CM10001582, CM10005579, CM10005580, CM10005582, CM10026115, CM10026139, CM10031224, CM10033123, CM10033125, CM10033208, CM10034552, CM10034553, CM10036776, CM10036777, CM10081024, CM10081041, CM10081042, CM10020298

$275.00

10082217 ConMet PreSet Drive Hub Assembly

10082217 ConMet PreSet Drive Hub Assembly

The most advanced wheel ends on the market, featuring ConMet wheel seals and bearings.

By replacing your wheel ends with genuine PreSet hubs, you get the following benefits:

  • Minimize downtime
  • Bring down labor costs
  • Diminish potential for errors during reassembly and installation
  • Reduce liability Complete warranty on all components

Ever since ConMet’s PreSet hub assembly was introduced in 1995, truck OEM’s have experienced the ease of its installation process. There’s no need for assembly or bearing adjustment, the PreSet assembly just slides right onto the spindle.

Why shouldn’t technicians in the aftermarket experience the same benefits?

Rebuilding or servicing hubs comes with risks. Servicing a hub oftentimes requires rebuilding the hub by replacing bearing cups and cones, the wheel seal, and manually-adjusting the bearings. Improperly servicing a hub can create a variety of wheel end problems, which could include a wheel off situation, leading to the possibility of serious injury and up to hundreds of thousands of dollars in fines or damages.

Given the risks of rebuilding hubs, what are the benefits of replacing them with ConMet’s PreSet Aftermarket hubs?

  • Besides keeping the truck OEM genuine like it came from the factory, PreSet replacement hubs come with a three-year limited warranty.
  • PreSet hubs are available when you need them since they are stocked in distribution centers.
  • A technician can rebuild a hub in about three hours. On the other hand, that same technician can replace a hub in as little as one hour. This can free up service bays for other service opportunities.
  • Most importantly, replacing hubs gives you peace of mind knowing you did your best to provide protection against potential liability issues.



ConMet Cross References / Brochures



SKU: CO-10082217 Categories: ,
Weight 55 lbs
10082217 ConMet PreSet Drive Hub Assembly Data
Hub Assembly 10082217
Status Active
Assembly Type PreSet Hub Assembly (Aftermarket)
Axle Location Drive
Axle Name R
Axle-Specific Specification Long Barrel
Mounting Hub Piloted – 10 Studs
ABS Yes
ABS Characteristic Has Stamped ABS Ring
Wheel Stud Bolt Circle Diameter 285.75 mm
Wheel Stud 10001331
Wheel Stud Standout 3.81″
Detailed On 10082340
Hub Rating 11,500 LBS    5,216 kg
Drum Pilot Diameter 8.78″
Bearing Set ½-stand Premium
Fill Hole 9/16”-18 UNF — #6 SAE J1926
Fill Plug Yes
ABS Offset 2.33″
Hub Offset 1.31″
Axle Stud Standout 1.75″
Axle Stud Diameter 5/8”
Weight 51.0 LBS    23.1 kg
Machining 10031183
Machined Flange Thickness 1.34″
Casting 10001280
Casting Material A356.0-T61 Aluminum
Seal Vendor ConMet




Bill of Materials — 10082217 ConMet PreSet Drive Hub Assembly
Item Description Material Qty Unit Type
10082385 INSTRUCTIONS AMKT INSTALLATION DOCUMENTATION 1 EA Miscellaneous Shipping Component
10081847 AMKT WARRANTY KIT REGISTRATION WARRANTY DOCUMENTATION 1 EA Miscellaneous Shipping Component
10049237 HUB BX, 14 X 14 X 13, KRFT, CMI AFTERMARKET PACKAGING 1 EA Miscellaneous Shipping Component
10020642 5/8″ AXLE STUD CAP PLASTIC 2 EA Cap for Axle Studs to Affix Shipping Cap
10009773 SHIPPING CAP PLASTIC 1 EA Shipping Cap
10080122 SEAL, PRESET CONMET PREMIUM 1 EA Seal
10033404 BEARING SPACER STEEL 1 EA Bearing Spacer
10041914 CONE, BEARING – OUTBOARD 1/2-STAND; STEEL (PREMIUM) 1 EA Bearing Cone
10041912 CONE, BEARING – INBOARD 1/2-STAND; STEEL (PREMIUM) 1 EA Bearing Cone
105272 #6 OIL PORT PLUG MILD STEEL 1 EA Port Plug
103705 RING, ABS MILD STEEL 1 EA ABS Tone Ring
103430 STUD, DOUBLE-ENDED 5/8″-11UNC / 5/8″-18UNF 8 EA Double-Ended Stud
10001331 STUD, WHEEL – PROP CL 10.9 M22 X 1.5MM X 5.15 LG 10 EA Wheel Stud
10041913 CUP, BEARING – OUTBOARD 1/2-STAND; STEEL (PREMIUM) 1 EA Bearing Cup
10041911 CUP, BEARING – INBOARD 1/2-STAND; STEEL (PREMIUM) 1 EA Bearing Cup
10031183 HUB, MACHINED 10001280 HUB, CAST ALUM 1 EA Hub Machining
10001280 HUB, CASTING A356-T6 ALUMINUM 1 EA Hub Casting

CM10001344, CM10001573, CM10001575, CM10001582, CM10005579, CM10005580, CM10005582, CM10026115, CM10026139, CM10031224, CM10033123, CM10033125, CM10033208, CM10034552, CM10034553, CM10036776, CM10036777, CM10081024, CM10081041, CM10081042, 10020298
