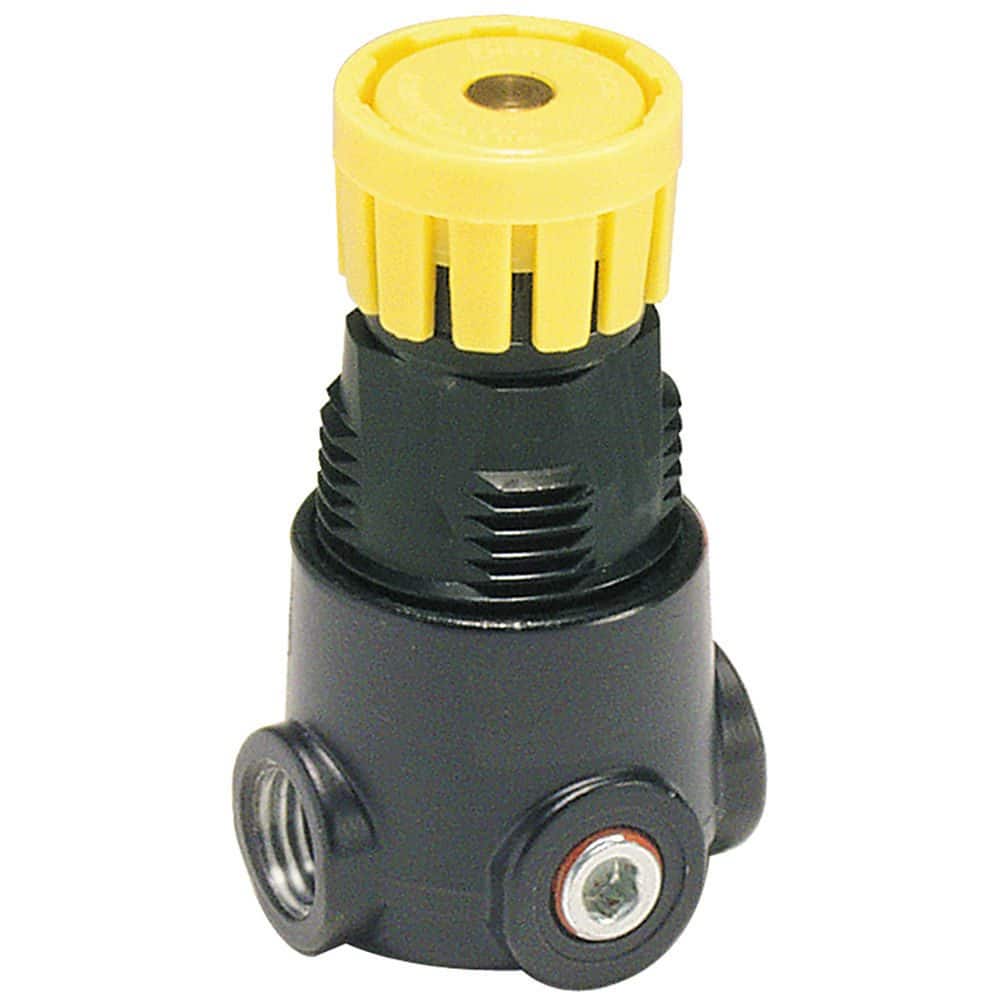

14R113FC Parker Air Regulator


Compare

$39.99/Each

14R113FC Parker Air Regulator

14R113FC Parker Air Regulator

Parker 14R non-modular mini regulators provide a convenient and low cost method to reduce a supplied air pressure to desired outlet pressure. They provide quick response and accurate pressure regulation for the most demanding applications. They are generally used in a wide variety of applications where reduced pressure is highly desirable, especially lift and tag axles.

Features;

  • Unbalanced poppet standard
  • Solid control piston with lip seal for extended life
  • Non-rising locking adjusting knob
  • Easily serviced
SKU: BW-14R113FC Categories: , , ,

Brand

John Dsuban Spring Service Inc.

Weight .25 lbs

Specs:

Product Type: Miniature Regulator
• Port Size: 1/8″(2), 1/4″(2)
• Port Type: NPT
• Maximum Inlet Pressure (PSIG): 300
• Maximum Inlet Pressure (bar): 20
• Operating Temperature (°F): 32° to 125° low temperature: -4° to 125°
• Operating Temperature (°C): 0° to 52° low temperature: -20° to 52°
• Pressure Control Range (PSIG): 1 to 15 | 1 to 30 | 1 to 60 | 2 to 125
• Pressure Control Range (bar): 0 to 1 |0 to 2 | 0 to 4 | 0 to 8
• Flow Rate (SCFM): 15
• Flow Rate (dm³/s): 7
• Body Material: Zinc
• Seal Material: Nitrile
