9/16 inch Diameter Round U-Bolt

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

Compare

9/16 inch Diameter Round U-Bolt with Deep Nuts and Washers only. No tie plate is included or available.

$5.99$23.94

Clear

9/16 inch Diameter Round U-Bolt is Custom Bent from the choices you make here. Please read the directions carefully.

9/16 inch Diameter Round U-Bolt

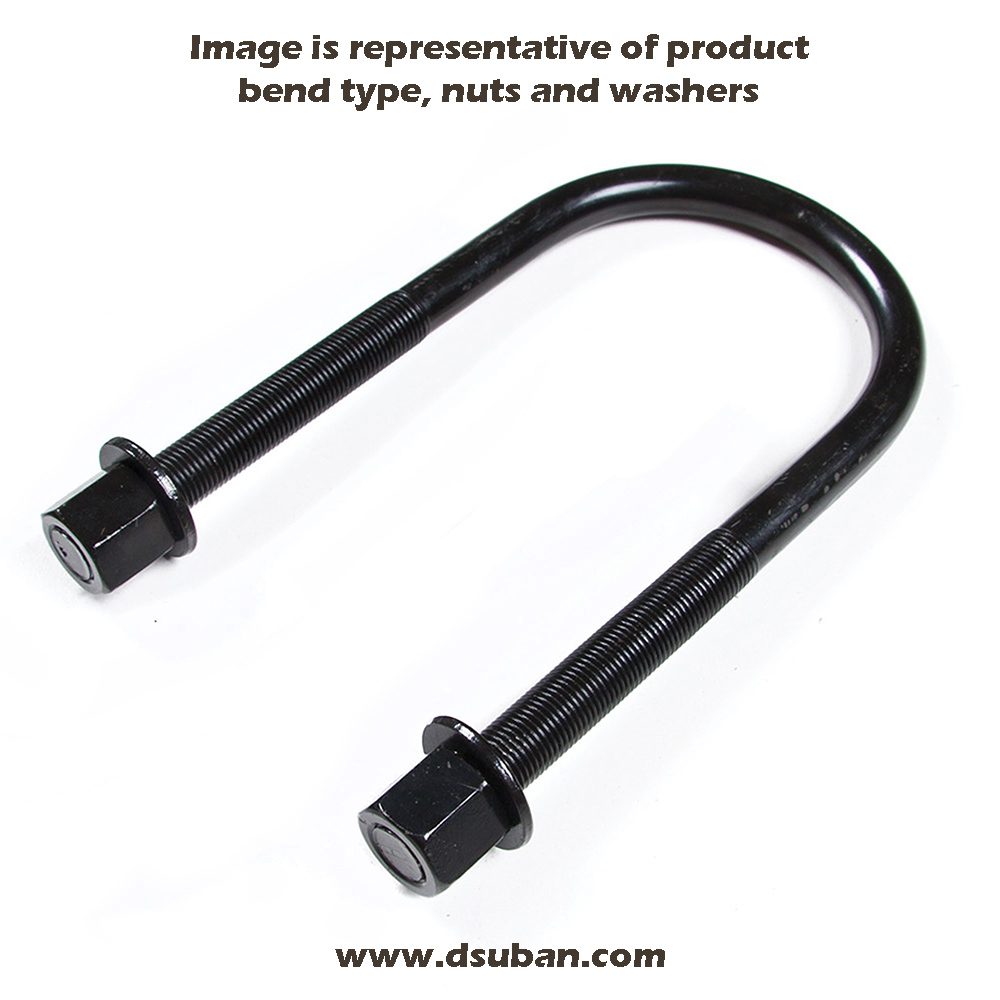

  • Pricing includes Extra Deep Nuts and Hardened Thick U-bolt Washers
  • Custom bent u-bolts are non-returnable.

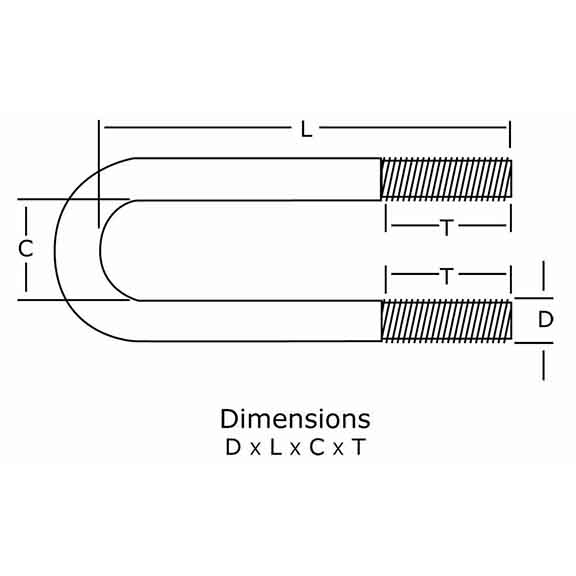

Measure your u-bolt using the image above to to get your pricing.

  • “C” = Inside Width    (measure inside width)
  • “L” = Inside Length   (measure from the highest point inside to the bottom of the leg of u-bolt)
  • “T” = Approximate Thread Length is calculated by multiplying 2 X “L” plus “C” (which equals the overall length of rod material before bending)
    • Approximate thread lengths are predetermined and are listed below;
      • (Total rod length = Thread length on each leg)
        • 8″   to 20″ = 2″-3″
        • 22″ to 30″ = 4″
        • 32″ to 48″ = 6″
SKU: 9/16 inch dia U-Bolt Round Categories: , Tags: ,
Weight 0.64 lbs
Inside Width

, , , , , ,

Inside Length

, , , , , , , , , , , , , ,

ITEM: is usually in stock. If u-bolt is for suspension use, re-tighten after the first 500-1000 miles. As new or repaired springs wear in, some settling of the spring pack will occur. Even a minor amount of this settling can cause a dramatic reduction in clamping force.

Specs:

  • .5625 (9/16) inch threads with a SAE thread pitch of 18 TPI
  • U-bolts up to 9/16 are Grade 5, while 5/8 and above are Grade 8.

We do not stock any form of stainless steel material. We do not offer any type of plating or galvanizing. All u-bolts we make are oil finish.

Physical properties:

150,000 PSI Minimum Tensile Strength; 130,000 PSI Minimum Yield Strength; 120,000 PSI Proof Load; 35% Reduction of Area; 10% Elongation. U-Bolts produced to SAE-J429 specification. This material is a cold drawn, stress relieved, micro-alloyed, 1541 modified steel. Please note that not all bending widths can be ordered on our web site.

For other information on our U-Bolts, please visit our U-Bolt information page.
