Watson Chalin Air Spring Mini Quick Release 17517

Rated 4.00 out of 5 based on 1 customer rating
(1 customer review)

Compare

$27.49/Each

Watson Chalin Air Spring Mini Quick Release 17517

Watson Chalin Air Spring Mini Quick Release 17517

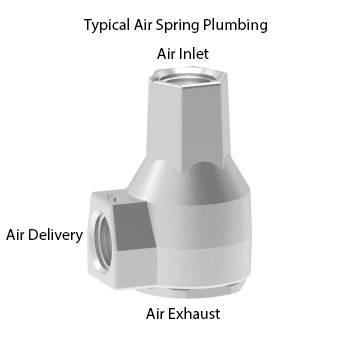

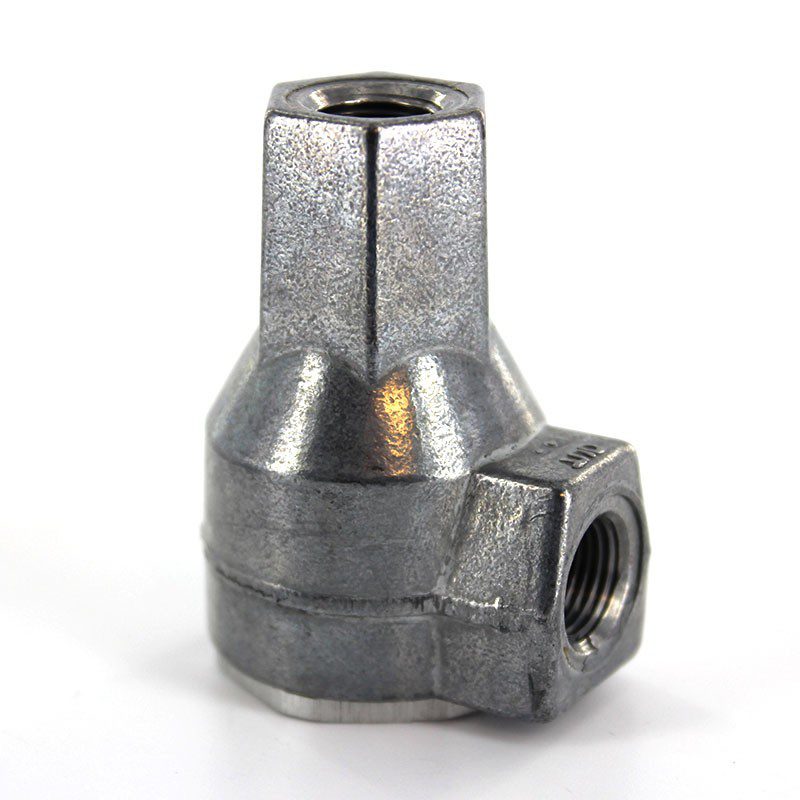

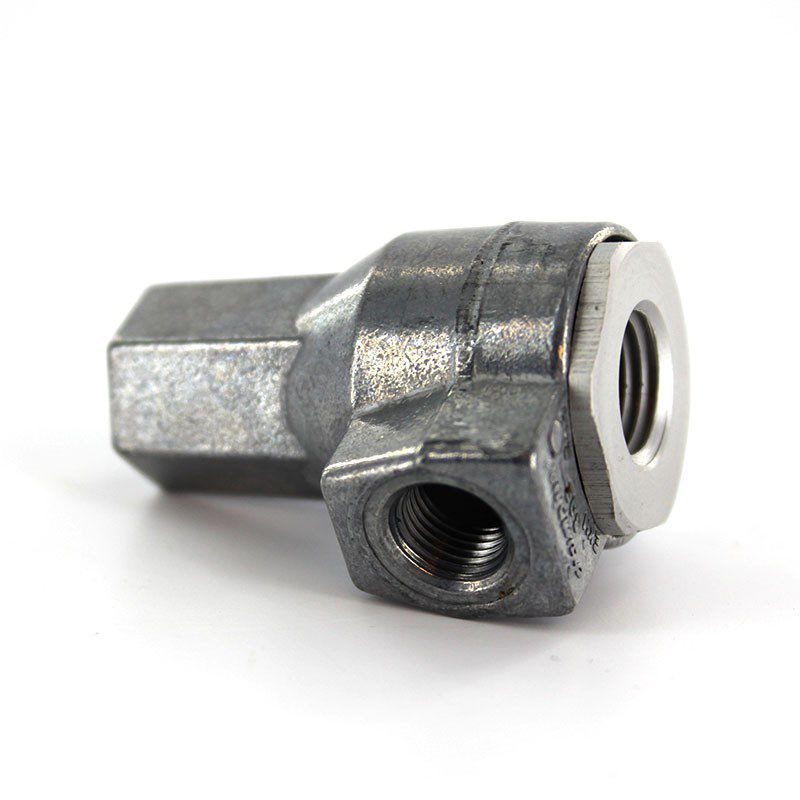

Model 17517 Quick Exhaust Valve has port sizes: IN 1/4″; OUT 1/4″; EXHAUST 1/4″.

Flow: 85 CFM (Cv 1.4)

Super Quick Exhaust Valves use a specially designed molded shuttle with an enhanced seat area to prevent rupture. Can used as shuttle valve, check valve or flow control valve.

Media: Air and other gases.

Made in the USA.

SKU: WC-17517 Categories: , ,

Brand

Watson & Chalin

Weight .25 lbs
  • Flow
    • Cv

      1.4
  • CFM @ 100 PSIG

    85.0 CFM
  • Materials
    • Seal Materials

      Polyurethane or FKM
  • Other Materials

    Zinc & Aluminum Die Cast, Zinc Plated Steel Fasteners
  • Operation
    • Type

      Quick Exhaust
    • Other Specifications
      • Maximum Cycle Rate (cycles/min)

        600 CPM
      • Weight (oz unless specified)

        2.56 OZ
    • Lubrication

      Not Required
    • Port Sizes
      • OUT

        1/4 PIPE
      • Port Size

        1/4 PIPE
    • EXHAUST

      1/4 PIPE IN
    • Pressure
      • Pressure Range

        0 – 150
      • Temperature
        • Ambient Temperature Range

          -25 – 180 F
